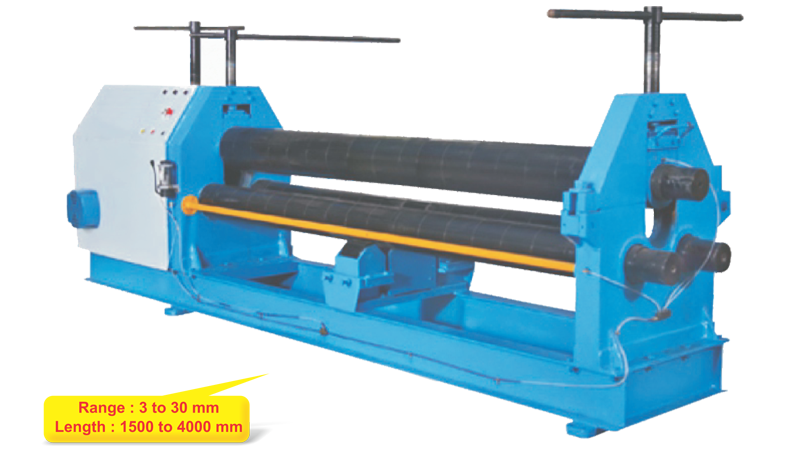

3 Roll Pyramid type Mechanical Plate Bending Machine

Our 3 roll Pyramid type Mechanical Plate Bending Machine delivers greater innovation in that the bottom rolls are power driven while upper roller is manual. This gives greater flexibility for light to medium rolling jobs. The 3 roll Pyramid type Mechanical Plate Bending machines are available with different specifications as per standard and custom requirements from Yash Machine Tools for various industries.

Mechanical Plate Bending Machine

Description

The PBM series 3 Roll Pyramid Type Mechanical Plate bending are designed to cater the basic requirements of bending & forming of metal plates. In this machine, the bottom rolls are driven by electric motor & gear box. The upper roll is having manual up & down adjustment to achieve desired bending radius. This is a very simple & robust design machine suitable for light to medium jobs.

Features

PBM SERIES (HYDRO-MECHANICAL)

  • 3 roll PYRAMID type design machine
  • The robust welded structure is made of UT tested IS:2062 M.S. plates
  • The top roll adjustment is by Hydraulic Cylinder
  • Bottom rolls are power driven
  • Bending rolls are made of alloy steel

PBM SERIES (MECHANICAL)

  • 3 roll PYRAMID type design machine
  • The robust welded structure is made of UT tested IS:2062 M.S. plates
  • The top roll adjustment is by Screw Jack
  • Bottom rolls are power driven
  • Bending rolls are made of alloy steel

Accessories

PBM SERIES (HYDRO-MECHANICAL)

Standard Accessories
  1. Main drive motor
  2. Reverse / Forward roll drive with overload protection
  3. Manual Centralized lubrication system
  4. Gearbox attached with Electric Motor
  5. Hydraulic end dropper arrangement
Optional Accessories
  1. Hardened Rolls
  2. Grounded Rolls
  3. Automatic lubrication system
  4. Extended shaft with profile bending rolls
  5. Conical bending arrangement
  6. Material feed table
  7. Digital Readouts

PBM SERIES (MECHANICAL)

Standard Accessories
  1. Main drive motor
  2. Reverse / Forward roll drive with overload protection
  3. Manual Centralized lubrication system
  4. Gearbox attached with Electric Motor
  5. Manual end dropper arrangement
Optional Accessories
  1. Hardened Rolls
  2. Grounded Rolls
  3. Automatic lubrication system
  4. Extended shaft with profile bending rolls
  5. Conical bending arrangement
  6. Material feed table
  7. Digital Readouts
